Cable Transport Carrousel Grillage & Seafastening Design电缆运输转盘垫梁与海固设计
1/4
Project:项目： Cable Transport Carrousel Grillage & Seafastening Design电缆运输转盘垫梁与海固设计
Client:客户： Oceanteam Solutions BV (Combifloat BV)
Year:年份： 2024
Simu Engineers Services:Simu Engineers 服务范围：
- • 3D modelling3D 建模

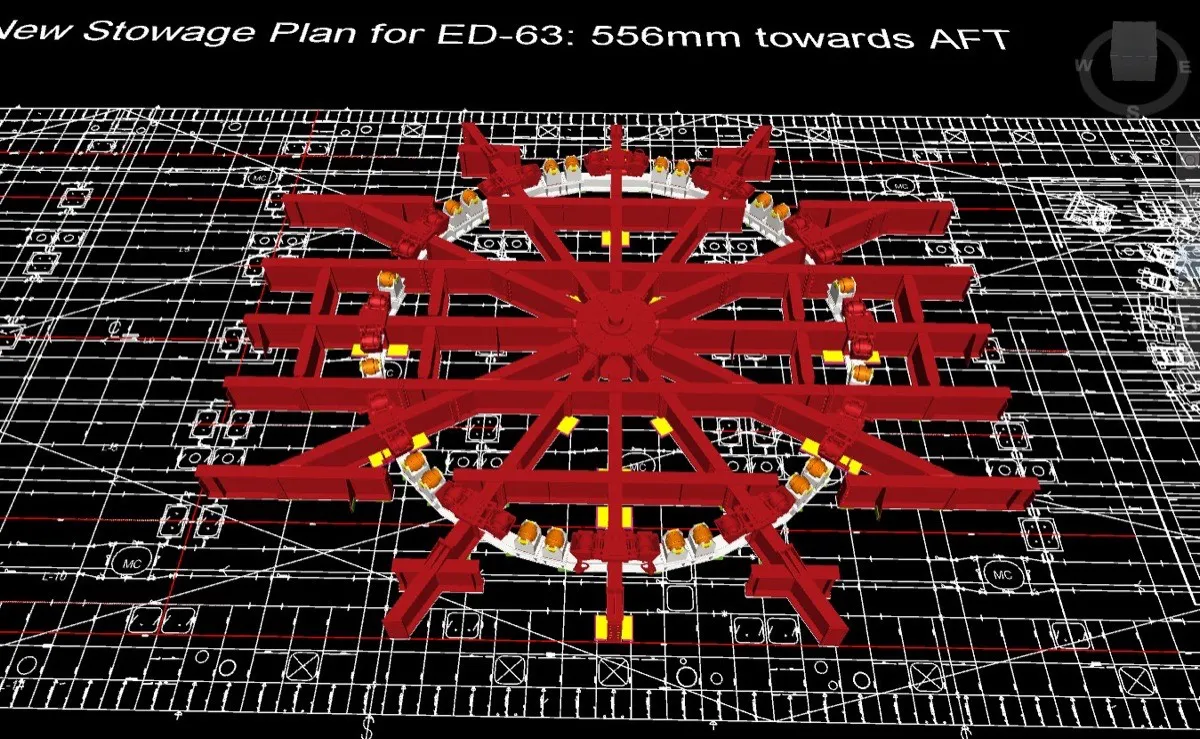

- • Stowage Plan积载方案
- • Grillage and Seafastening Design垫梁与海固设计
- • Structural Analysis结构分析
- • Design Drawings and Shop Drawings设计图与加工图

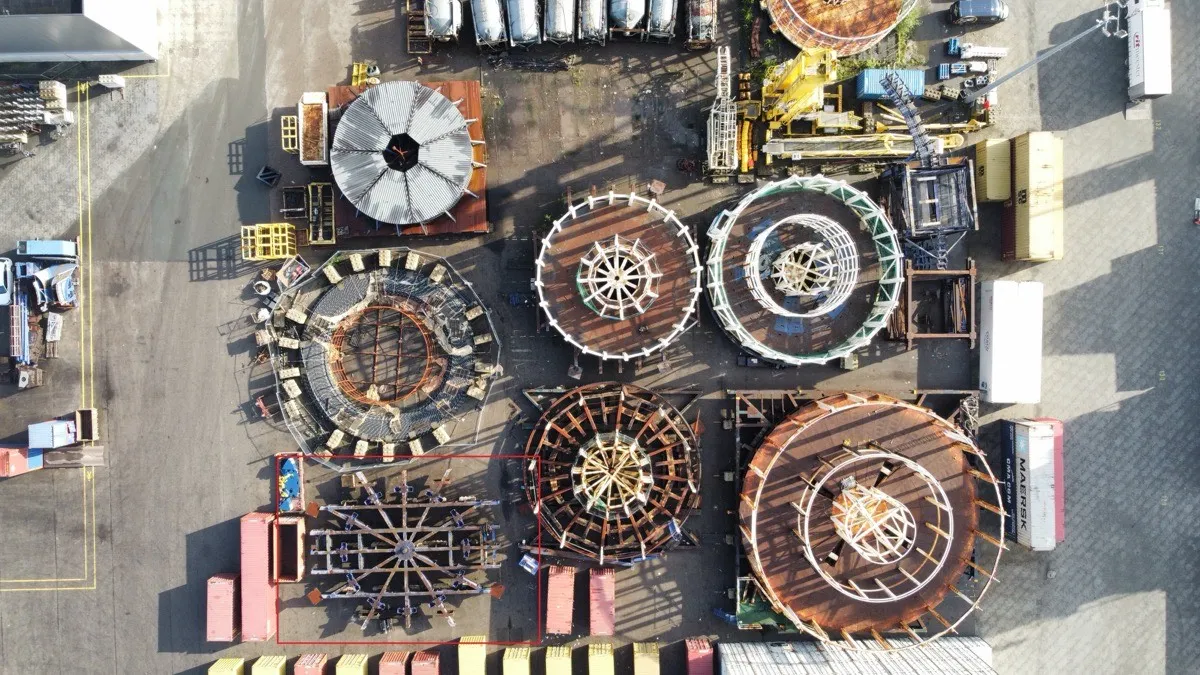

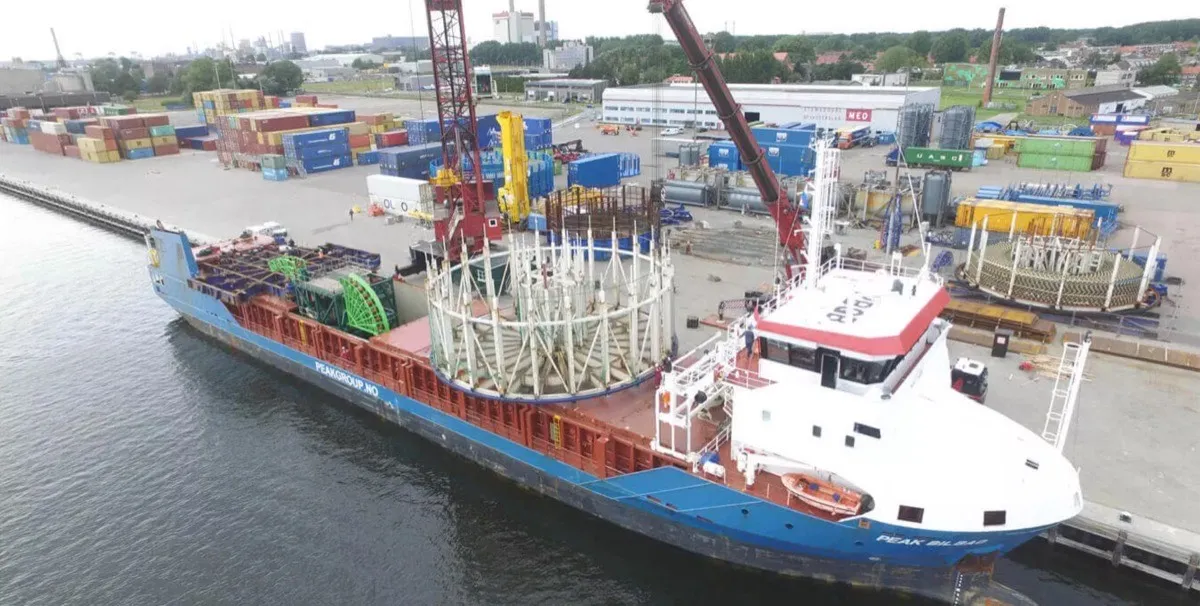

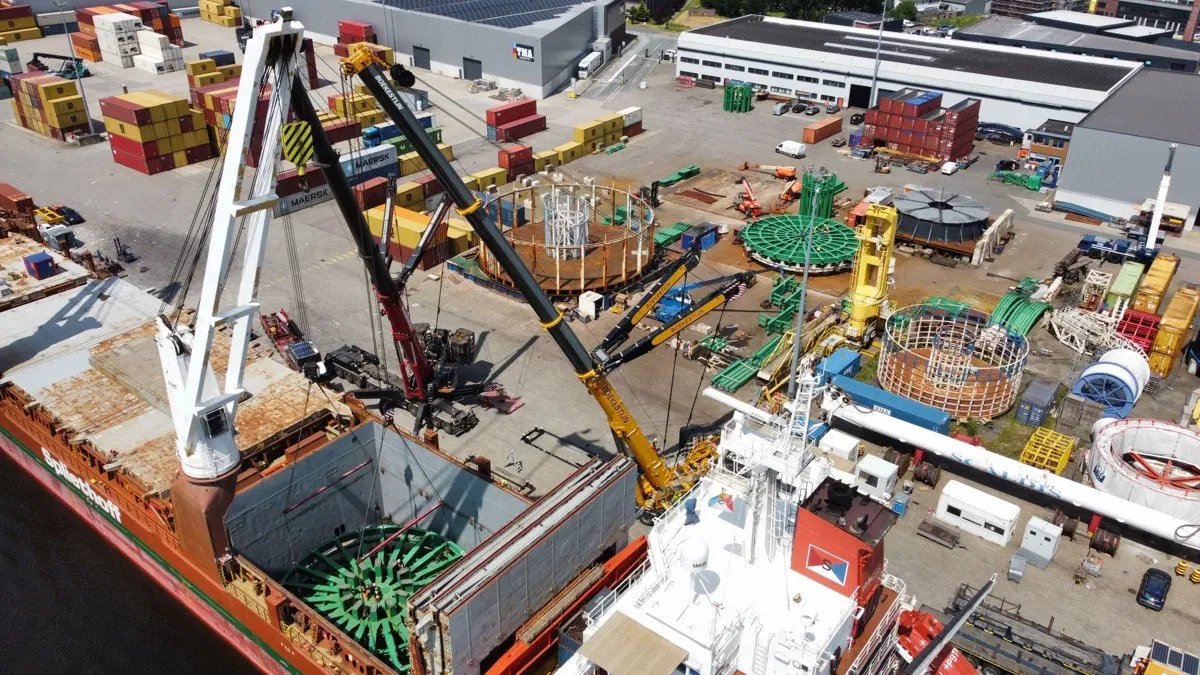

Simu Engineers BV is requested by Oceanteam Solutions BV to verify and modify the existing grillage and seafastening design to transport ED-63 Carrousel which is cable of storage and transport 2500mT cable offshore on a barge. The works are carried out at the yard facilities in Velsen, near Amsterdam.Oceanteam Solutions BV 委托 Simu Engineers BV 验证并修改既有垫梁与海固设计，用于在驳船上运输可储存并运输 2500 吨海缆的 ED-63 电缆转盘。工作在阿姆斯特丹附近 Velsen 的场地设施完成。
The scope of SIMU includes structural analysis, grillage and seafastening design drawing and shop drawing.SIMU 的工作范围包括结构分析、垫梁与海固设计图及加工图。
