Project:项目： DAC (Direct Air Capture) CompressorDAC（直接空气捕集）压缩机
Client:客户： Jord Oil & Gas Systems BV
Year:年份： 2024
Simu Engineers Services:Simu Engineers 服务范围：

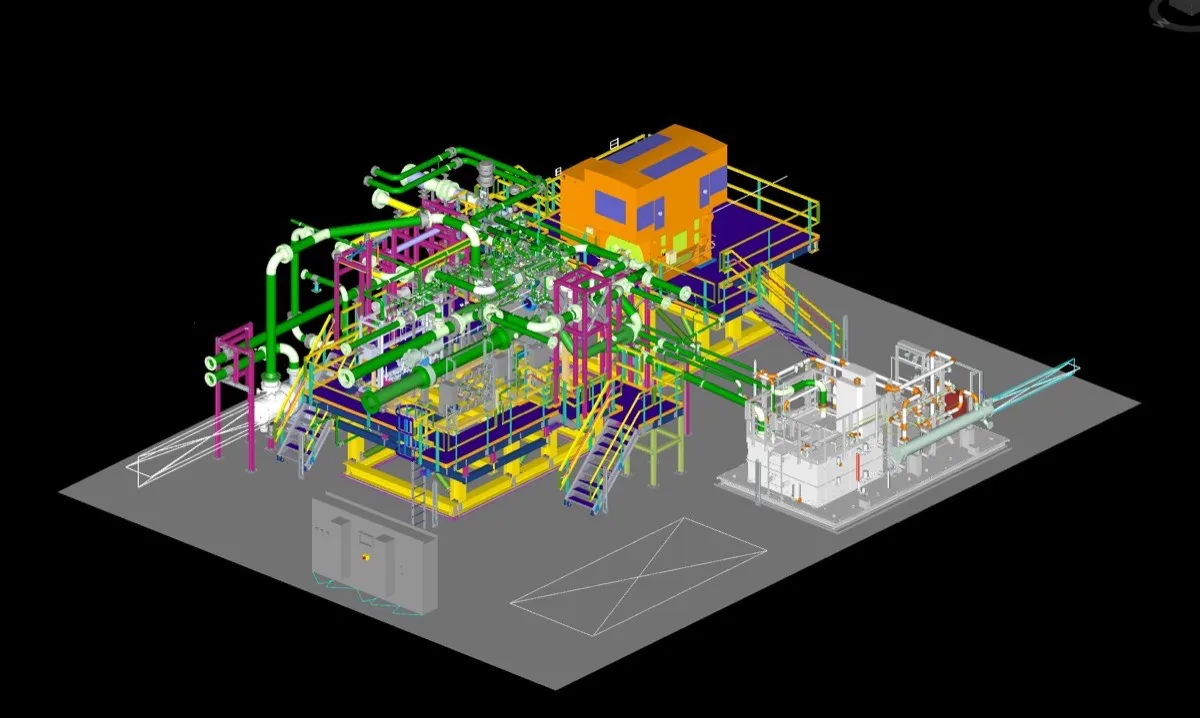

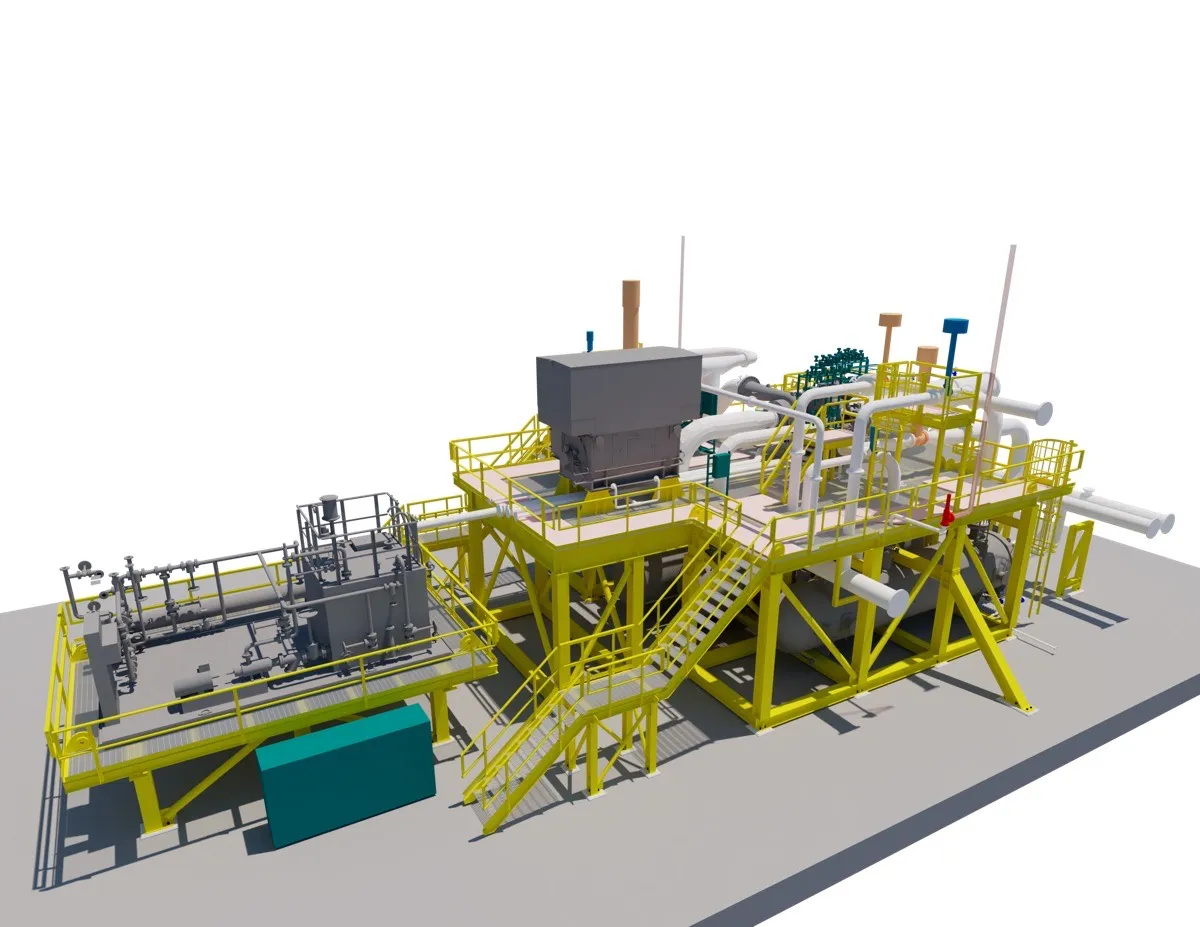

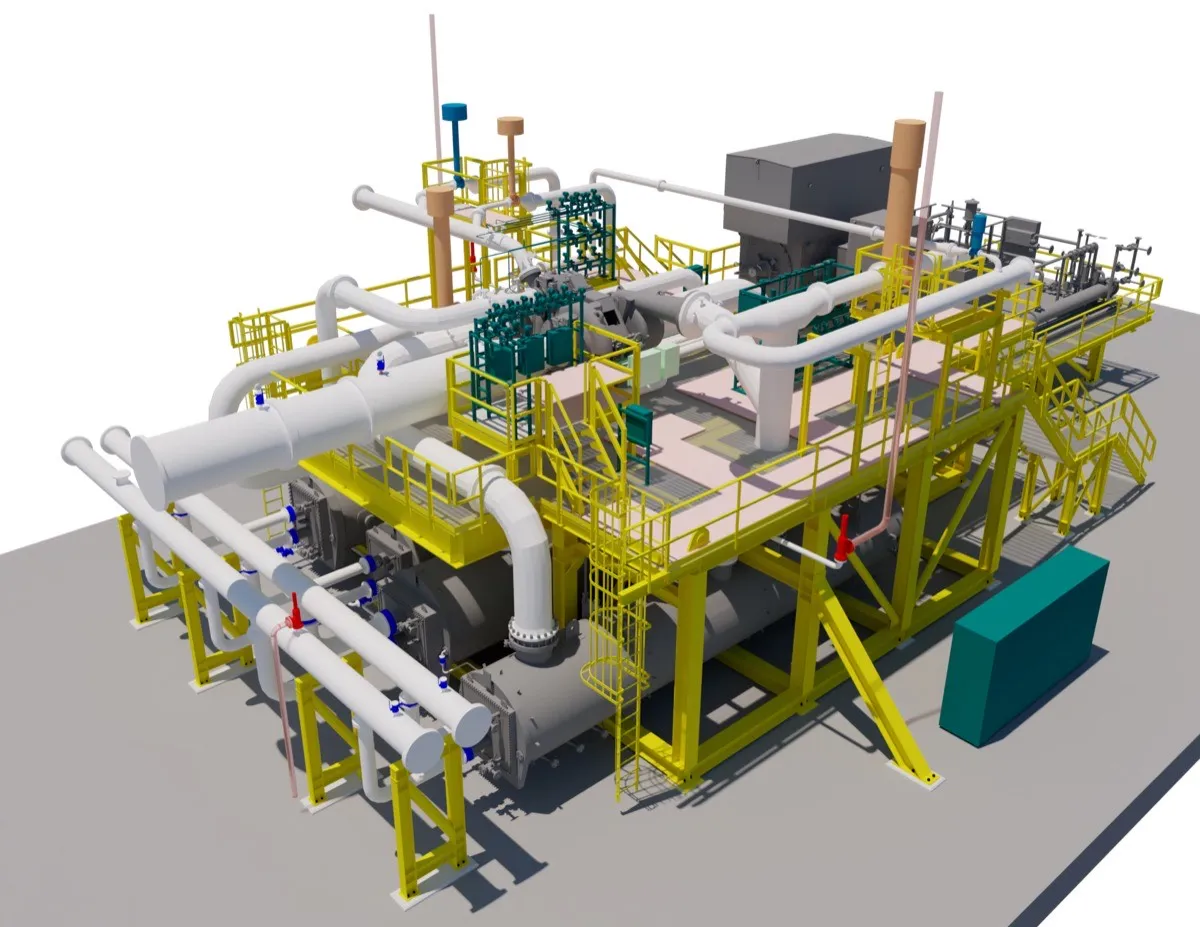

- • 3D modelling3D 建模
- • Structural Analysis结构分析
- • Design Drawings and Shop Drawings设计图与加工图
- • Machine Vibration Analysis机械振动分析
JORD is awarded the EPC Works of the Wet CO2 Compressor for the OXY Odessa Direct Air Capture - 1 plant, which is comprising of the design, engineering, procurement, fabrication, construction, inspection, mechanically completion, test, FAT, and delivery as per the agreed schedule and at the approved fabrication yard.JORD 中标 OXY Odessa 直接空气捕集一号工厂湿式二氧化碳压缩机的 EPC 工程，涵盖设计、工程、采购、制造、施工、检验、机械完工、测试、出厂验收（FAT），并按约定进度在认可的制造场地交付。

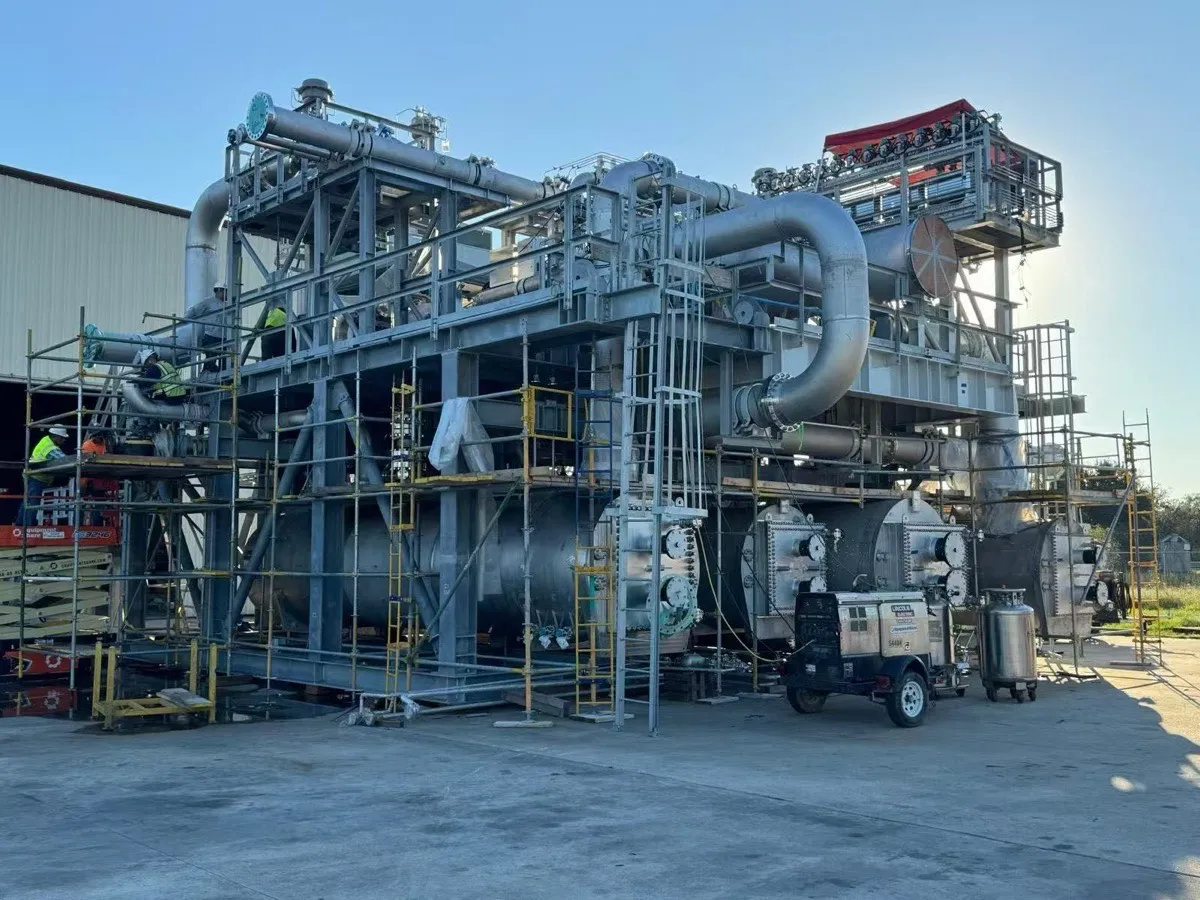

The skid has the following equipment: Compressor, Intercoolers, Seal gas panels, Lube oil skid, E-motor and all necessary valves, strainer, piping, and instruments. The skid will be fabricated in Dubai (UAE), transported to USA, and installed by module concepts at site. Simu is responsible for Structural Engineering and Design work for both WET and DRY CO2 compressor trains.撬块包含以下设备：压缩机、中间冷却器、密封气盘、润滑油撬、电机以及全部必要的阀门、过滤器、管道与仪表。撬块在迪拜（阿联酋）制造，运往美国，并以模块化方式现场安装。Simu 负责湿式与干式二氧化碳压缩机组的结构工程与设计工作。
The structural design is based on bolted concepts and unique challenges are the stringent requirements on forced vibration analysis due to sensitivity of compressor machines.结构设计基于螺栓连接方案，独特挑战在于压缩机设备的敏感性带来的强迫振动分析的严苛要求。
