Mammoet Solutions – MTC-15Mammoet Solutions – MTC-15

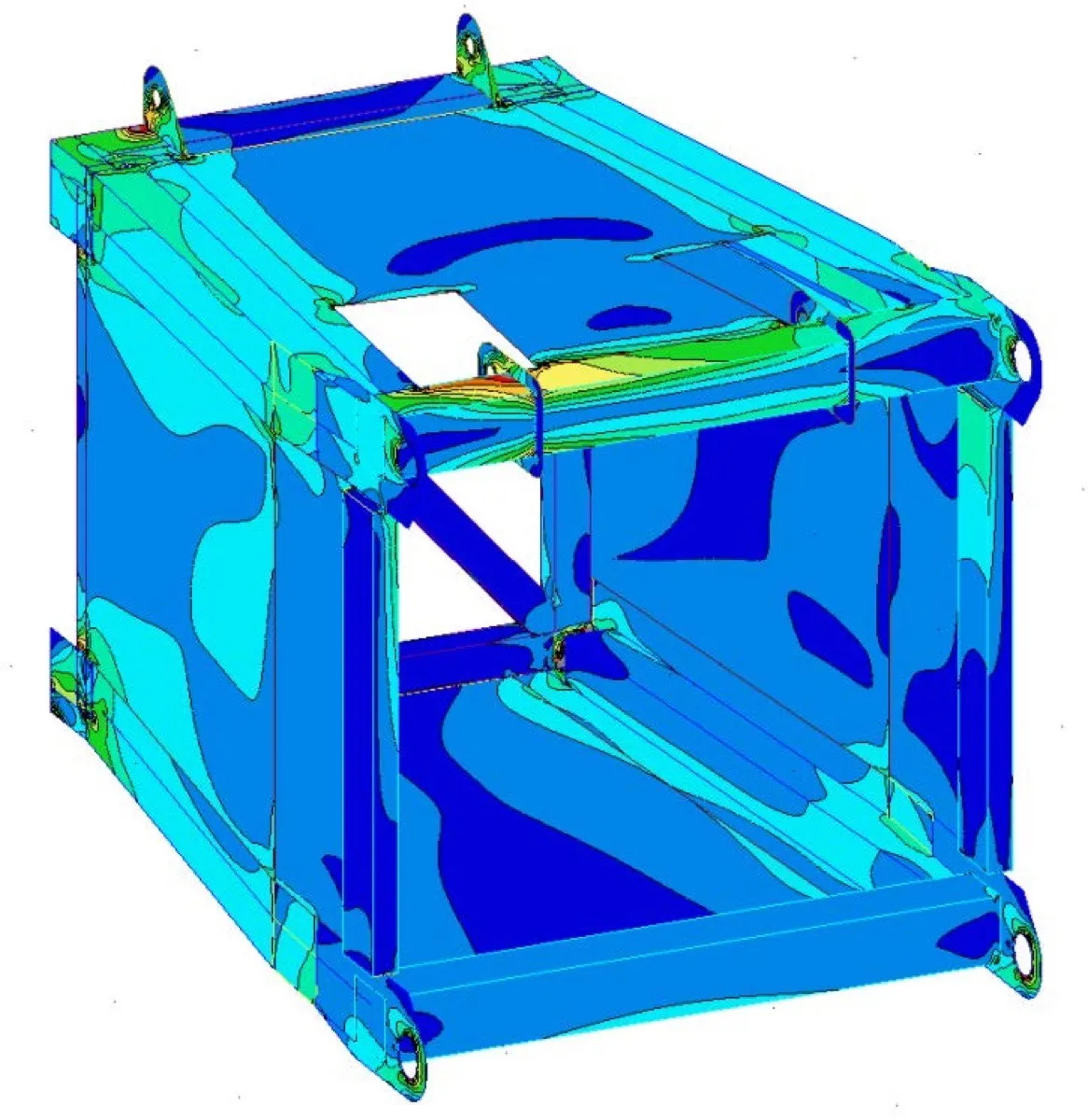

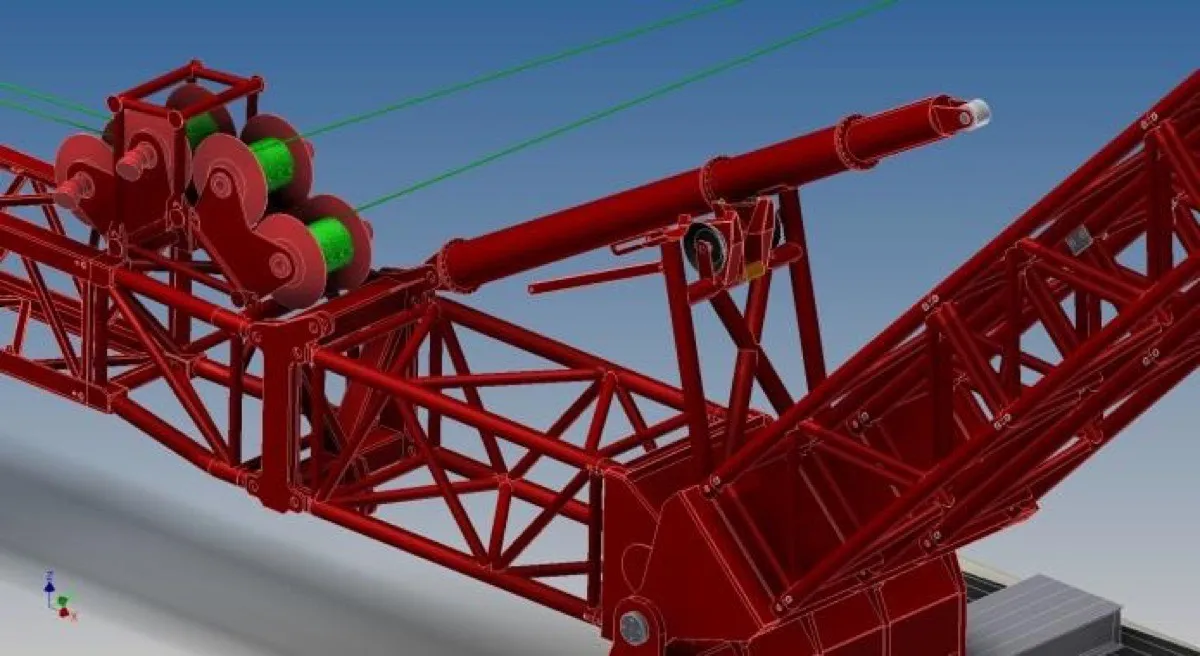

The new Mammoet Terminal Crane is designed for small harbours where large and heavy cranes have no access to. The crane is fully containerized. To fill in the gap in the market, Mammoet designs this 500 [Te] capacity crane at an outreach of 30 [m]. Several components are reused from the old MSG-II crane designed by Huisman and several components are re-calculated by using modern FEM-software. The crane is fully containerized. The loads are determined in a FE parametric model and are used to verify every component in the crane. The design and structural analysis are performed simultaneously to minimize man-hours which results in a cost efficient crane by reusing old components.新型 Mammoet 码头起重机为大型重型起重机无法进入的小型港口而设计，整机完全集装箱化。为填补市场空白，Mammoet 设计了这台 30 米幅度、500 吨容量的起重机。部分部件复用 Huisman 设计的旧 MSG-II 起重机，并使用现代有限元软件重新计算。荷载通过有限元参数化模型确定，用于校核起重机的每个部件。设计与结构分析同步进行以减少工时，通过复用旧部件实现了高性价比。
